Rudder circuit bungees
Posted: Thu Sep 05, 2013 6:37 pm
by Peter C
I am missing the bungees that go from the rudder pedals to the fuselage frame on SE-FUT. From the drawings the bungees appear to be 3/8” diameter, however no lengths are given on the drawings. I plan to make these from 3/8” aircraft bungee cord and hook fittings. Does anyone know how long these should be, or perhaps more useful, what tension is required? I have the original all flying rudder and guess there needs to be a reasonable tension in these bungees in order to centralise the rudder in flight.
Regards
Peter
SE-FUT
Re: Rudder circuit bungees
Posted: Wed Jan 01, 2014 9:18 am
by Neil Spooner
Hi Peter,
Did you get the info' you needed for the bungees?
Regards
Neil
Re: Rudder circuit bungees
Posted: Wed Jan 01, 2014 12:58 pm
by G-BLMW
Hi Peter

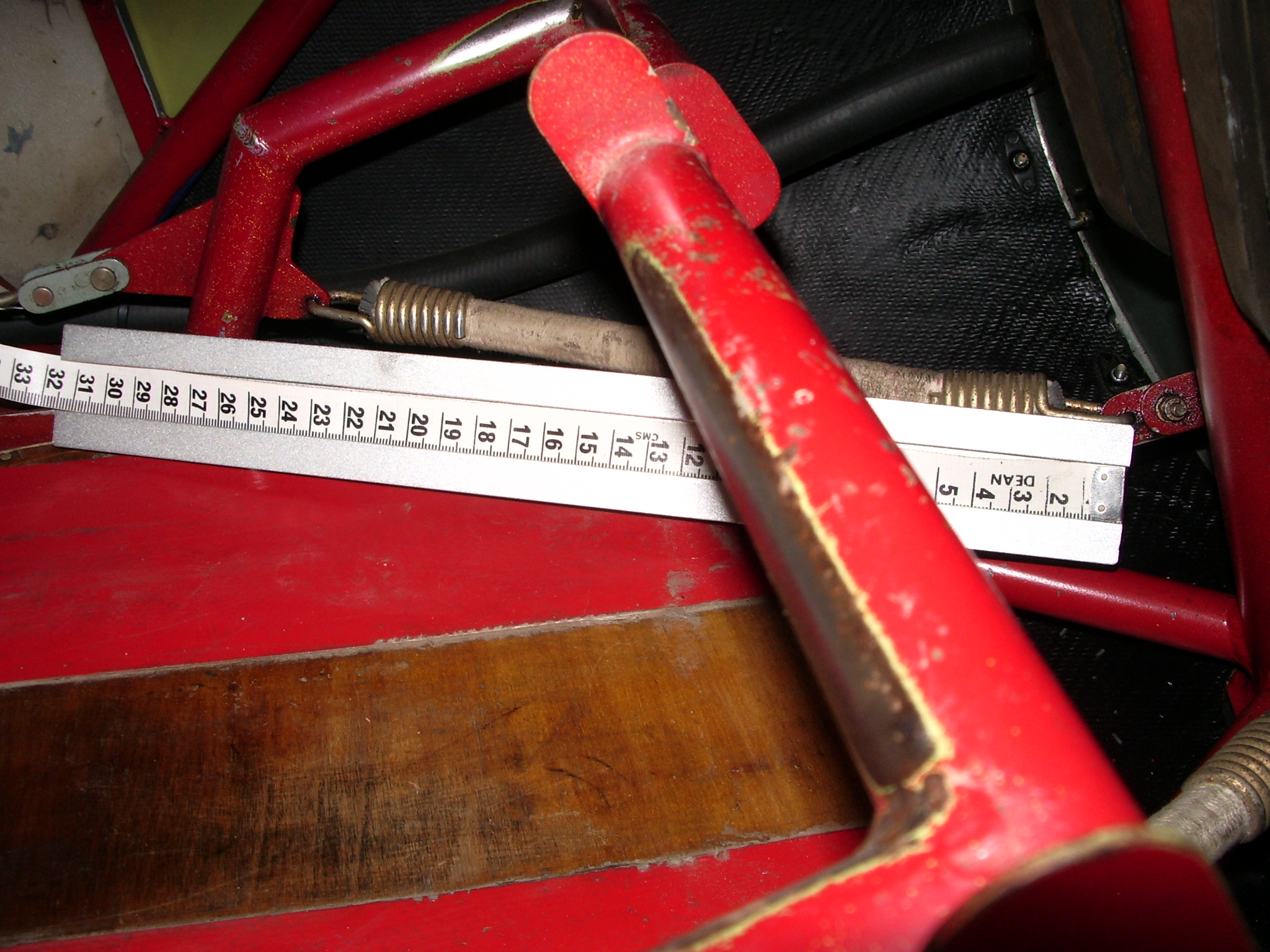

A picture speaks a thousand words hope this helps, bungee is at its free un-tensioned length.
- IMGP2593.JPG (1.07 MiB) Viewed 7319 times
Regards
Stuart
Re: Rudder circuit bungees
Posted: Thu Jan 02, 2014 4:36 pm
by Peter C
Hi Stuart,
I made and fitted the bungees a couple of months ago after you posted the picture on one of the other threads. Thanks again for the information
Peter
SE-FUT
Re: Rudder circuit bungees
Posted: Thu Jan 02, 2014 7:38 pm
by G-BLMW
Doh!! ............ senior moment. Glad you got it sorted .
Stuart
